LUNA Bridge — Lab x5 Trial Edition v2.0.4 RS-232C / USB-Serial to TCP Bridge for Electronics & Lab Use

LUNA Bridge — Lab x5 Trial Edition v2.0.4

RS-232C / USB-Serial to TCP Bridge for Electronics & Lab Use

──────────────────────────────────────────────────────────

Connect your ESP32, Arduino, instruments, and serial devices

to Claude AI and any TCP-capable application — no drivers, no hassle.

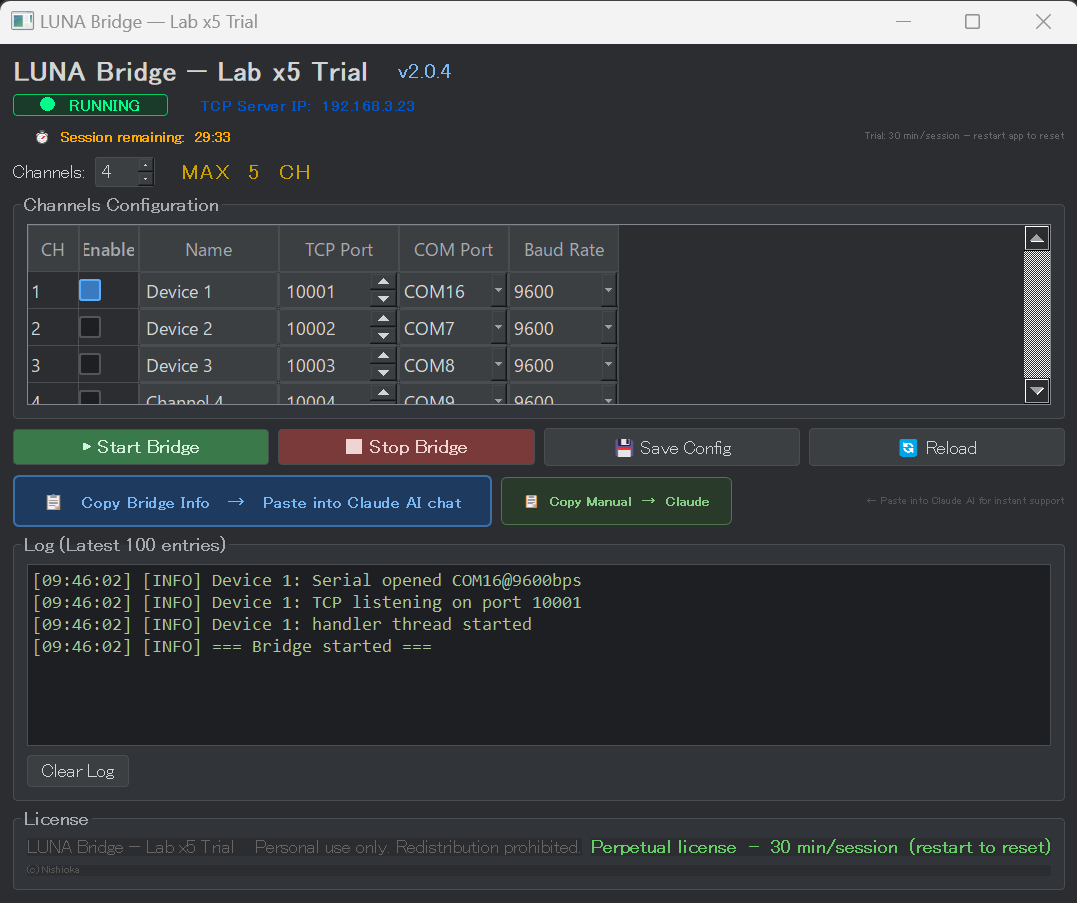

LUNA Bridge converts up to 5 RS-232C / USB-serial ports into

TCP network ports on your Windows PC. Your application or

AI assistant connects over Wi-Fi just as if it were wired

directly to the device.

■ WHAT IT DOES

Serial Device (ESP32 / instrument / sensor)

→ COM port on Windows PC

→ LUNA Bridge

→ TCP port (Wi-Fi / LAN)

→ Claude AI / your app / any TCP client

■ TYPICAL USE CASES

• ESP32 / Arduino serial monitor, sensor logging, firmware debug

• DMM / bench instruments SCPI command control (voltage, current, frequency)

• Industrial / PLC Modbus RTU, custom protocol

• GPS / GNSS receiver NMEA data acquisition

• Data logger / sensor unit any RS-232C / USB-serial output

■ KEY FEATURES

• Up to 5 channels — run multiple devices simultaneously

• Baud rates: 300 – 115200 bps (all standard rates)

• One-click "Copy Bridge Info → Claude AI" for instant AI support

• One-click "Copy Manual → Claude AI" — Claude instantly

understands the app and guides you through any operation

• Settings auto-saved and reloaded on next launch

• Single EXE — no installation required

■ CLAUDE AI INTEGRATION

Paste the bridge info into Claude chat and ask naturally:

"Read the sensor value from port 10001"

"Send MEAS:VOLT:DC? to the DMM and return the result"

Claude reads and writes serial commands through the TCP bridge.

■ TRIAL TERMS

• Free to use — no expiry date

• 30-minute continuous session limit per run

• Restart the application to begin a new 30-minute session

• Purchase the full Lab x5 edition for unlimited session length

■ SYSTEM REQUIREMENTS

• Windows 10 / 11 (64-bit)

• USB-to-serial adapter or RS-232C port

• No Python or additional runtime required

■ LINKS

Full edition (no session limit): https://onstepninja.booth.pm/

Project page / GitHub: https://github.com/OnStepNinja/LUNA

© Nishioka Sadahiko
