Voice Zones [VRChat Routing Voice System]

🐚 Voice Zones

Plug & Play Voice Routing System

Voice Zones is a modular voice routing system designed to help creators build private voice areas, amplified microphones, speaker zones, staff rooms, stage setups, roleplay areas, and custom audio spaces with a clean plug & play workflow.

After importing the package, go to:

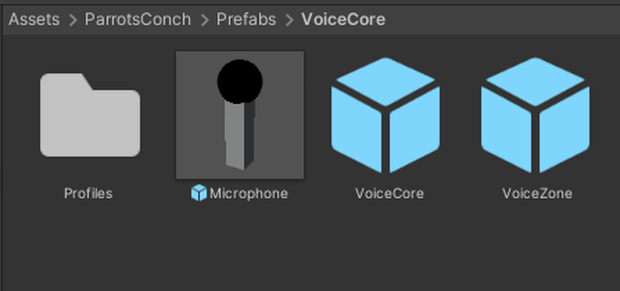

Assets/ParrotsConch/Prefabs/VoiceCore

Inside this folder you will find all the required prefabs ready to drag into your scene. The system includes the main VoiceCore, VoiceZone, Microphone, and a Profiles folder with 2 example profiles that can be used or duplicated as templates.

📦 What Is Included?

🧠 VoiceCore

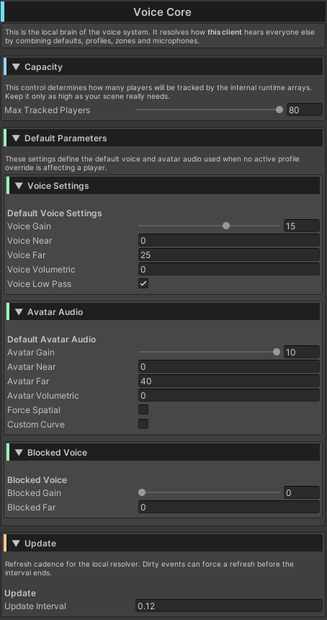

VoiceCore is the main controller of the system.

It manages voice routing, player tracking, zones, microphones, profiles, priorities, and resolved voice settings.

It controls default voice behavior, blocked voice values, avatar audio settings, debug output, and can track up to 80 players.

Only one VoiceCore is usually needed in the scene.

🔶 VoiceZone

VoiceZone is a trigger-based area that changes how player voice behaves while inside it.

It can be used for private rooms, booths, stages, VIP areas, staff spaces, isolated rooms, or any place where you want custom voice rules.

Each VoiceZone uses a Voice Profile, which defines the channel, priority, range, gain, and listening rules.

🎙️ Microphone

The Microphone prefab lets players use an amplified or routed voice profile.

It supports:

Activate on pickup

Push-to-talk while held

Synced speaker tracking

Profile-based voice settings

This is useful for stages, announcements, events, host areas, roleplay tools, and performance spaces.

📘 Voice Profiles

Profiles are reusable voice configuration assets.

Instead of setting every zone manually, you can create a profile once and assign it to multiple VoiceZones or Microphones.

A Voice Profile includes:

Profile name

Priority

Zone type

Channel ID

Inside/outside hearing rules

Voice gain

Near and far distance

Volumetric radius

Lowpass

Avatar audio override

One-way listening from other profiles

Optional high-range listening mode

The included Profiles folder contains 2 example profiles to help you start quickly.

✨ Main Features

Plug & play setup

Drag-and-drop prefabs

Trigger-based voice zones

Pickup and push-to-talk microphone

Reusable voice profiles

Channel-based routing

Priority-based profile resolution

Amplifier-only mode

Custom voice gain and distance

Avatar audio override support

One-way profile listening

Local repair tracking for zones

Debug output support

Supports up to 80 tracked players

Includes 2 example profiles

🚀 Basic Setup

Import the package.

Go to Assets/ParrotsConch/Prefabs/VoiceCore.

Drag VoiceCore into your scene.

Drag one or more VoiceZone prefabs where you need custom voice behavior.

Assign a Voice Profile to each zone.

Use or duplicate the included example profiles.

Optionally add the Microphone prefab for amplified voice areas.

Test and adjust gain, range, channels, priority, and routing rules.

🎯 Perfect For

Private rooms

Stage microphones

Staff areas

Club systems

Event spaces

Roleplay zones

VIP rooms

Interview booths

One-way listening setups

Announcement microphones

Isolated voice areas

Voice Zones gives you a flexible and easy-to-use voice routing foundation for interactive worlds, without forcing you to build a complex audio system from zero. Drag the prefabs, assign profiles, adjust the rules, and your custom voice setup is ready.
