v5.9.8 — LUNA Lab Edition: ADC/DAC Analog I/O

## AiBridgeMCP v5.9.8 — LUNA Lab Edition 🔬

> **From AI Bridge to AI Bridge & Platform.**

> LUNA is no longer just a bridge between Claude and your instruments —

> it is becoming a programmable AI-native platform for physical computing.

---

### 🆕 What's New in v5.9.8

#### `adc` module — Analog Input (ESP32 ADC1)

Read real-world analog voltages directly from Lua scripts.

| Function | Description |

|----------|-------------|

| `adc.atten(pin, db)` | Set measurement range: `0`=0–950mV / `1`=0–1250mV / `2`=0–1750mV / `3`=0–3100mV |

| `adc.read(pin)` | Raw 12-bit value (0–4095) |

| `adc.read_mv(pin)` | Calibrated millivolts (eFuse correction applied) |

| `adc.read_avg(pin, n)` | Average of n readings in mV — reduces noise (recommended n ≥ 16) |

**Supported pins:** GPIO32–35 (recommended). GPIO36(VP), GPIO39(VN) are reserved — avoid.

**⚠ ADC2 pins conflict with WiFi — use ADC1 only.**

---

#### `dac` module — Analog Output (ESP32 hardware DAC)

Output true analog voltages — no RC filter required.

| Function | Description |

|----------|-------------|

| `dac.write(pin, value)` | Output 0–255 → 0V to 3.3V. GPIO25 (DAC1) or GPIO26 (DAC2) only. |

| `dac.stop(pin)` | Disable DAC output |

**Supported pins:** GPIO25 (DAC1), GPIO26 (DAC2, shared with Output 4 on OnStepNinja V2).

**⚠ ESP32-S3 has no hardware DAC. Use `gpio.pwm()` + RC filter as a pseudo-DAC.**

**⚠ Do not use DAC and PWM simultaneously on the same pin.**

---

### 💡 Verified on Hardware

All functions confirmed on ESP32-D0WD-V3:

- `adc.read_mv(34)` → 3145 mV ✅ (calibrated, stable)

- `dac.write(26, 128)` → 1.72V measured (expected 1.647V, +4.4% — within spec) ✅

- `dac.write(25, 0–255)` → Smooth LED fade confirmed ✅

- Invalid pin rejection (ADC2 / non-DAC pins) → correct error returned ✅

---

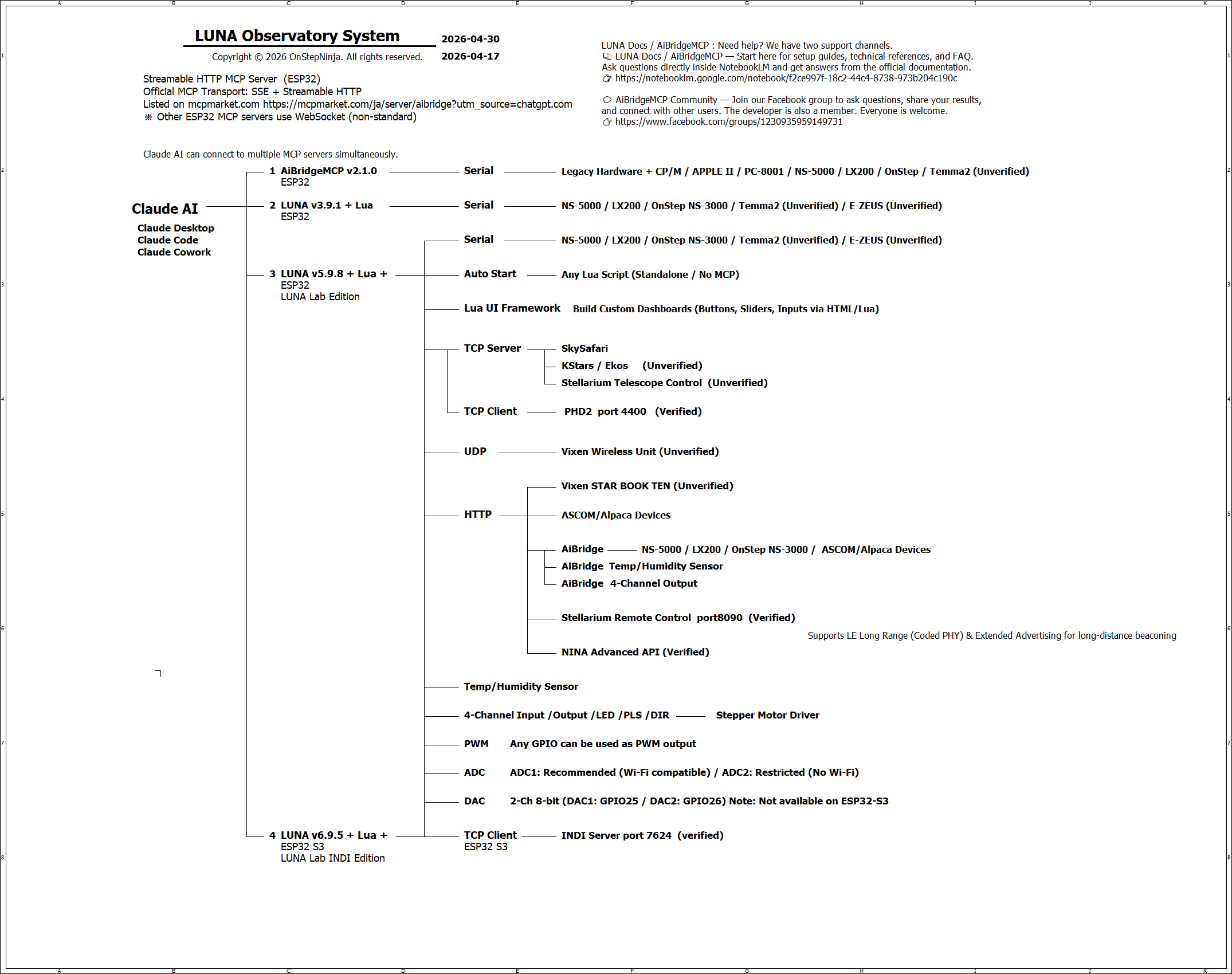

### 🌉 From AI Bridge to AI Bridge & Platform

When LUNA first launched, it was designed as a **bridge** —

connecting Claude AI to telescopes, serial instruments, and local networks via MCP.

With v5.9.8, LUNA takes a step further.

By adding true analog I/O (`adc` / `dac`) alongside existing modules

(`gpio`, `sensor`, `tcp`, `udp`, `http`, `json`, `ntp`, `ui`, `log`, `ble`...),

LUNA is evolving into an **AI-native physical computing platform** —

where Claude can not only communicate with devices,

but **sense, measure, and directly control the physical world**,

all through natural conversation and Lua scripts.

> **Telescope control → Sensor logging → Analog experiments → BLE mesh networks.**

> One device. One platform. Driven by AI.

This opens the door to applications in:

- 🔭 Amateur astronomy automation

- 🧪 Lab & bioscience experiments (voltage stimulus / response measurement)

- 🌱 Environmental monitoring

- 🤖 AI-driven robotics and physical computing

---

### 📦 How to Use

1. Flash `AiBridgeMCP_v5_9_8.ino` via Arduino IDE (ESP32 board, Huge APP partition)

2. Connect to WiFi via the setup page

3. Add to Claude Desktop `claude_desktop_config.json`

4. Ask Claude to `get_lua_guide` — then start experimenting!

---

### ❤️ Support the Project on BOOTH

This firmware is **free and open** — always will be.

If LUNA has been useful to you, the same firmware (pre-compiled binary, ready to flash)

is available on BOOTH as a **pay-what-you-feel download**:

👉 **https://onstepninja.booth.pm/**

Your support — however small — directly funds continued development.

New modules, new editions, new ideas.

Every download is a vote for the next version. Thank you. 🙏

---

### 📄 Changelog

- `FIRMWARE_VERSION`: 5.9.7 → **5.9.8**

- `EDITION_NAME`: "LUNA" → **"LUNA Lab"**

- Added: `adc` module (atten / read / read_mv / read_avg)

- Added: `dac` module (write / stop)

- Changed: `FILE_MANAGER_LED_PIN` GPIO25 → GPIO33 (frees GPIO25 for DAC1)

- Updated: `lua_exec` description, `luna_guide` (adc/dac sections)

- Fixed: Lua guide — corrected GPIO25 LED note, GPIO36/39 warning, GPIO26 DAC/PWM caution

---

*LUNA — AI Bridge & Platform for the Physical World.*

*Solo indie project by Nishioka*
