【 3D STL 】Grenade No.36M Mk.1 “Mills Bomb” Firecracer Video Available

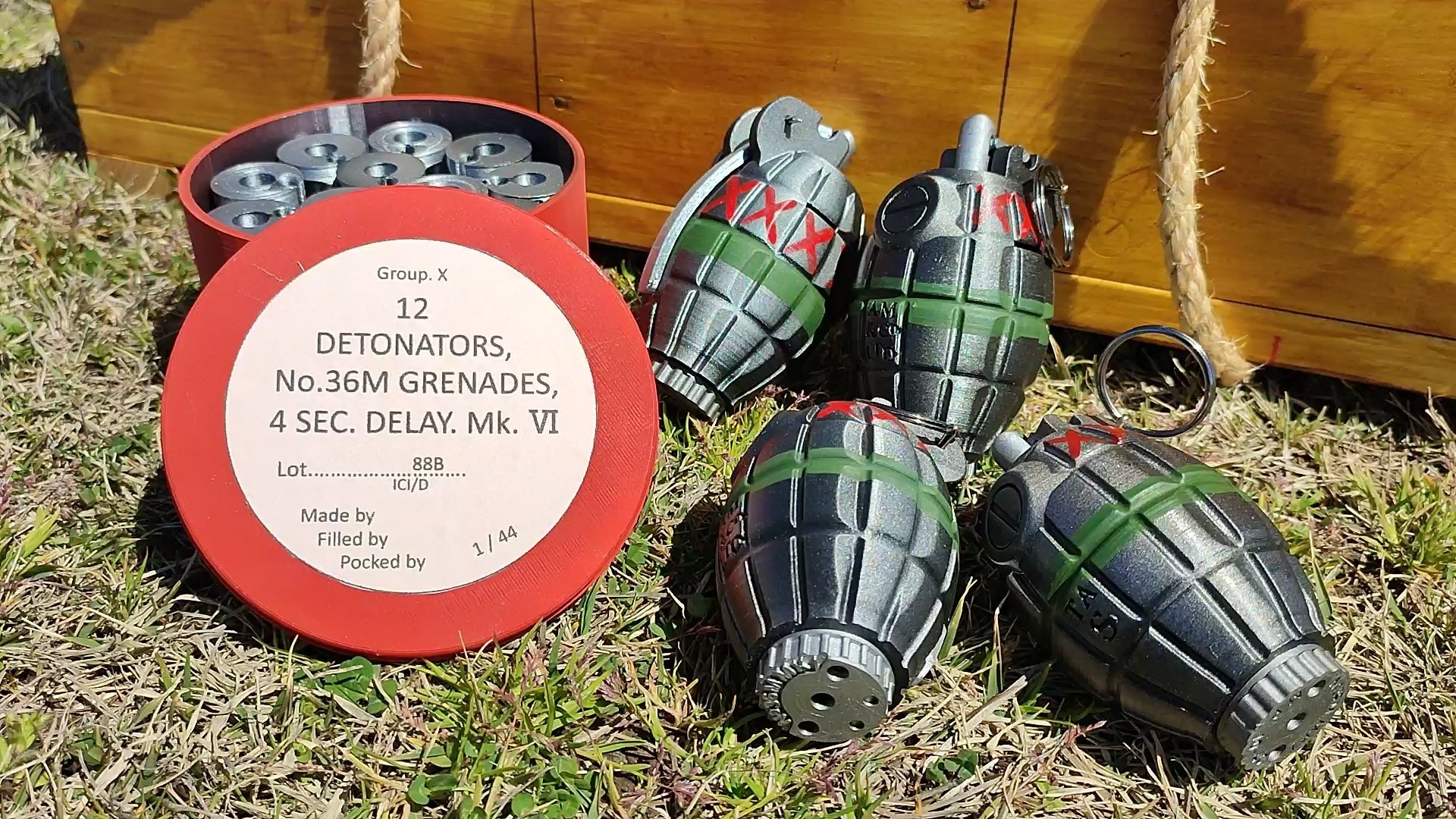

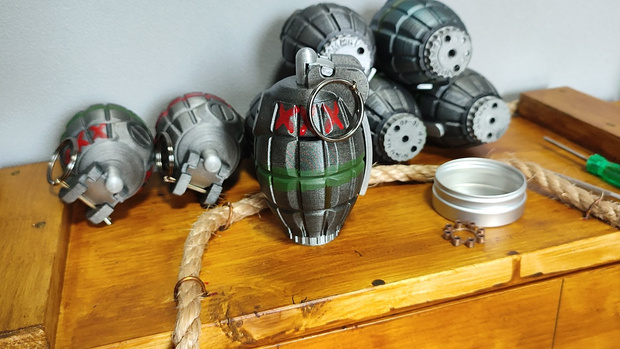

Grenade No.36M Mk.1 “Mills Bomb” (complete version) Firecracer version.2.7.9

I created this because I thought it would be nice to have a grenade that makes a sound and can be used during historical reenactment games.

It works by using a 5mm cap, such as a Kanecap, and when thrown 6-7 yards or more away, it makes an explosion sound.

As a bonus, it comes with a gas check plate compatible with the No. 1 Cup Discharger that I previously made and distributed for the S&T Lee-Enfield No. 1 Mk.3*.

●YouTube

Demonstration　PartⅠ

https://youtu.be/I7pKLHhL9ik?si=RiQhe2swFjTC-ozJ

Assembly　　　PartⅡ

https://youtu.be/iHwVl44tREw?si=3JYWlDZLrkAIRESf

●File format

STL data of each part in zip file.

●Recommended print settings

・Printing speed：60～75％ (body and lever)

・Print in the same orientation as the image.

・Print with nozzles smaller than 1mm

・When using Ultimaker Cura to print on an Ender-3 printer, set the support overhang angle to 55.0°.

●Screws and springs required for assembly

・Hollow Set Screw ( M3×16mm )

・Hollow Set Screw ( M3×10mm )

・Compression spring ( 0.6×5.0×30mm )

・Tension spring SR-401 ( 0.5×5.5×25mm )

・Cotter Pin 2×40mm ＆ Ring 30～35mm

・Wire about 1 mm in diameter

●readme

Purchasers of this data do not have the right to redistribute or use it commercially.
