![[KiCad用] インテル i386 シンボル&フットプリント](https://booth.pximg.net/c/620x620/7f88e9dc-984e-4215-bf54-0092ab5be3b8/i/5528387/a762f616-6fe7-4ef1-bf8c-db6c6770a2a0.png)
sono_PCshop상품 설명

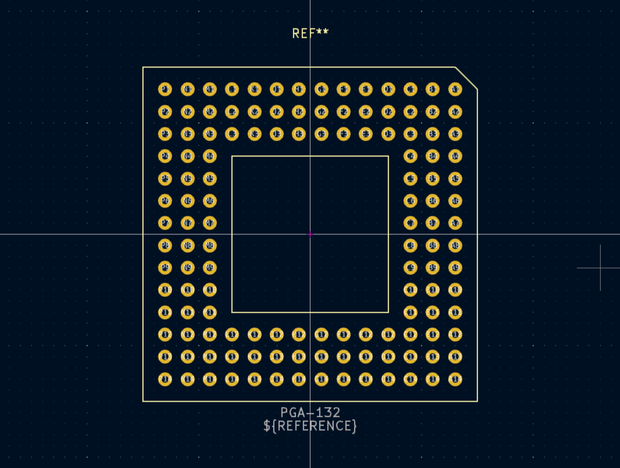

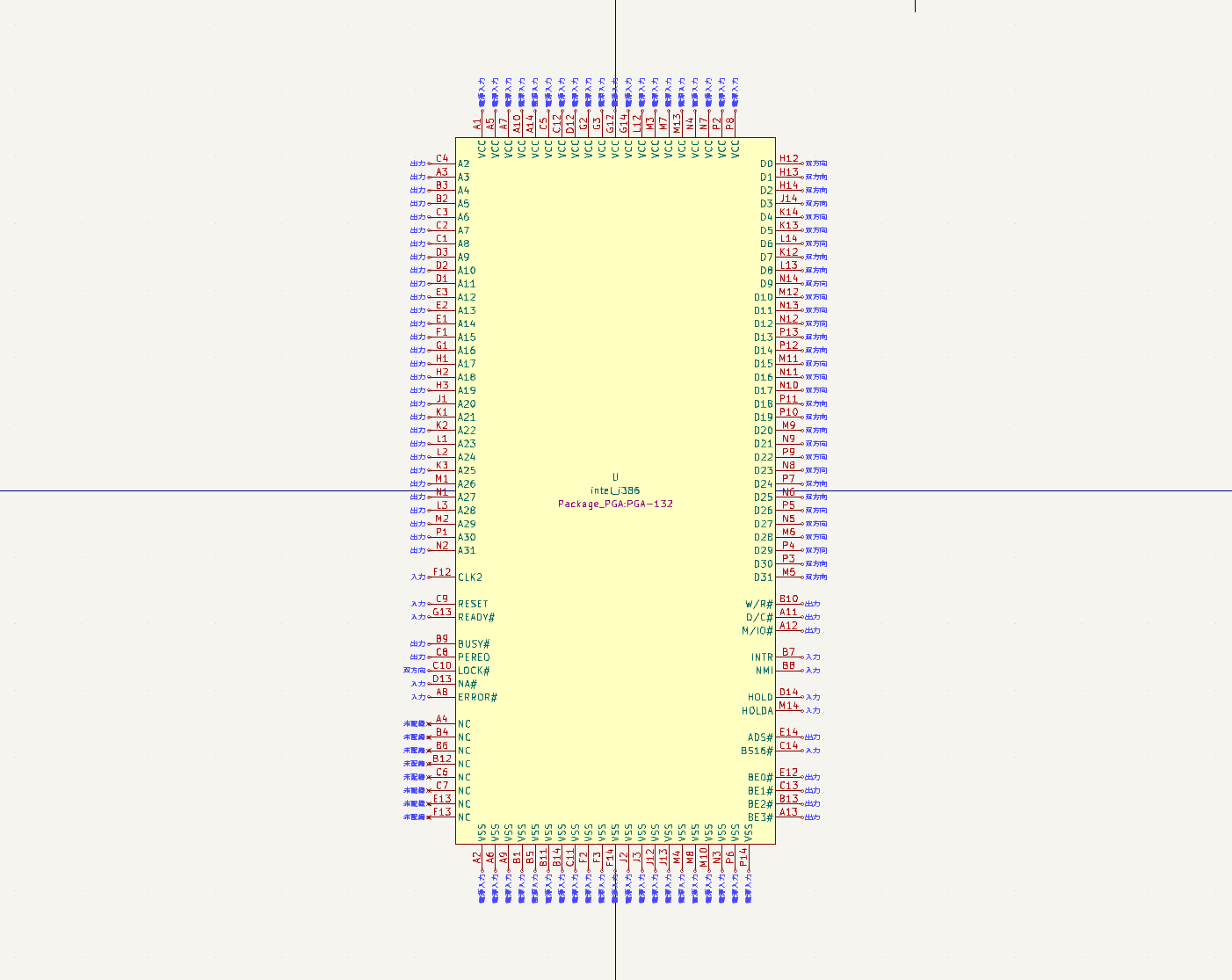

■KiCad7.0用に作成したintel製CPUであるi386のシンボルとPGA132のフットプリントです。
ご自由にお使いください。
■ファイル一覧
・intel_i386.kicad_sym
・PGA-132.kicad_mod
